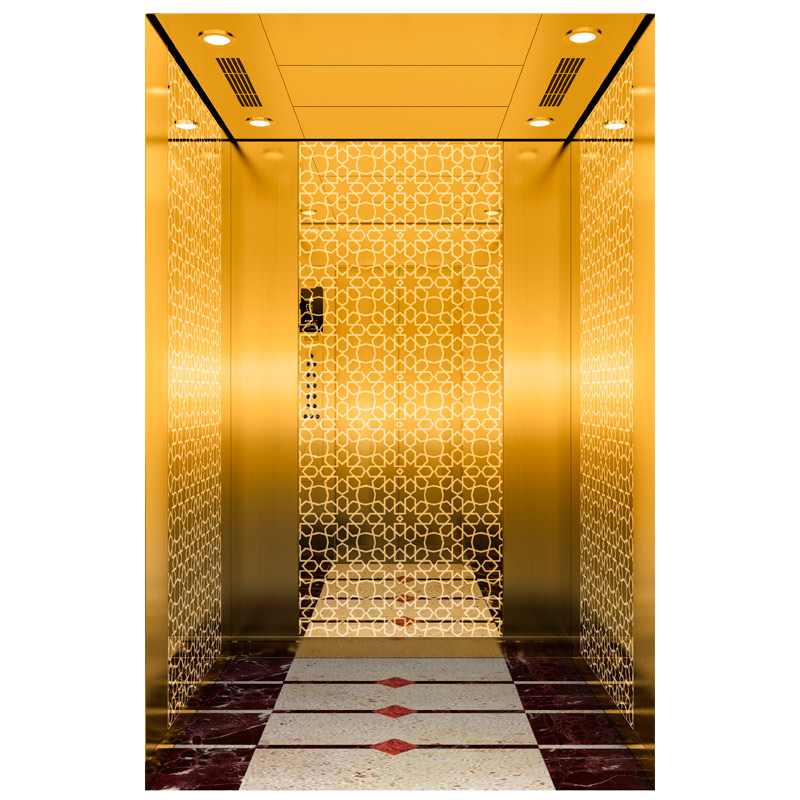

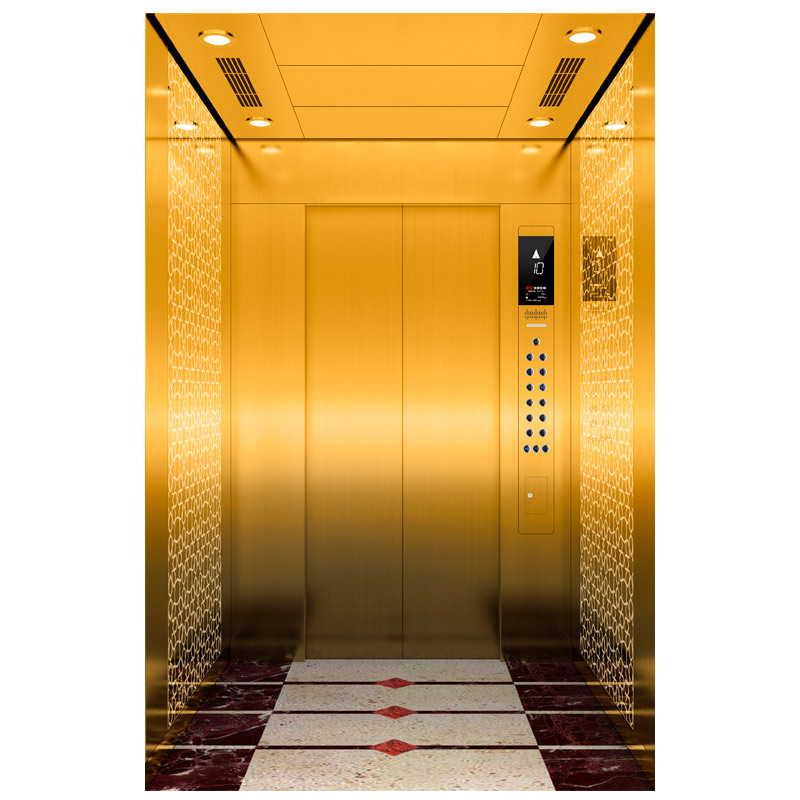

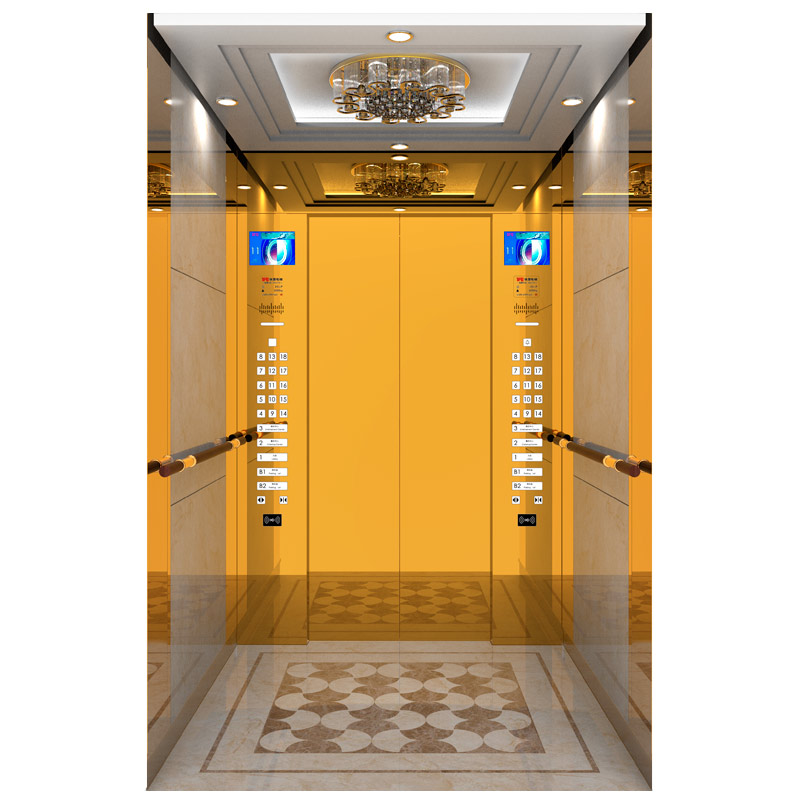

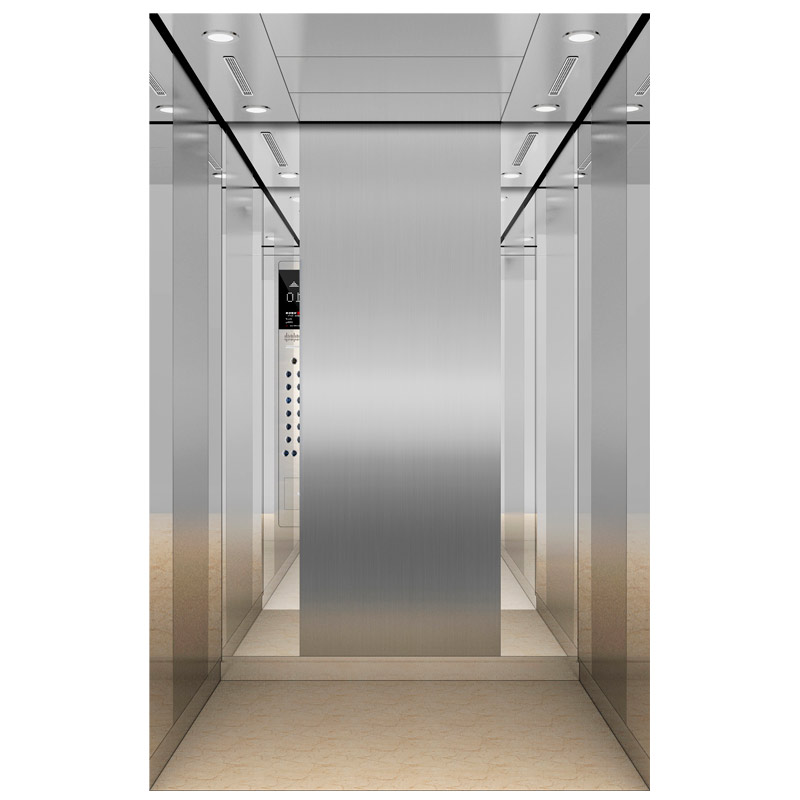

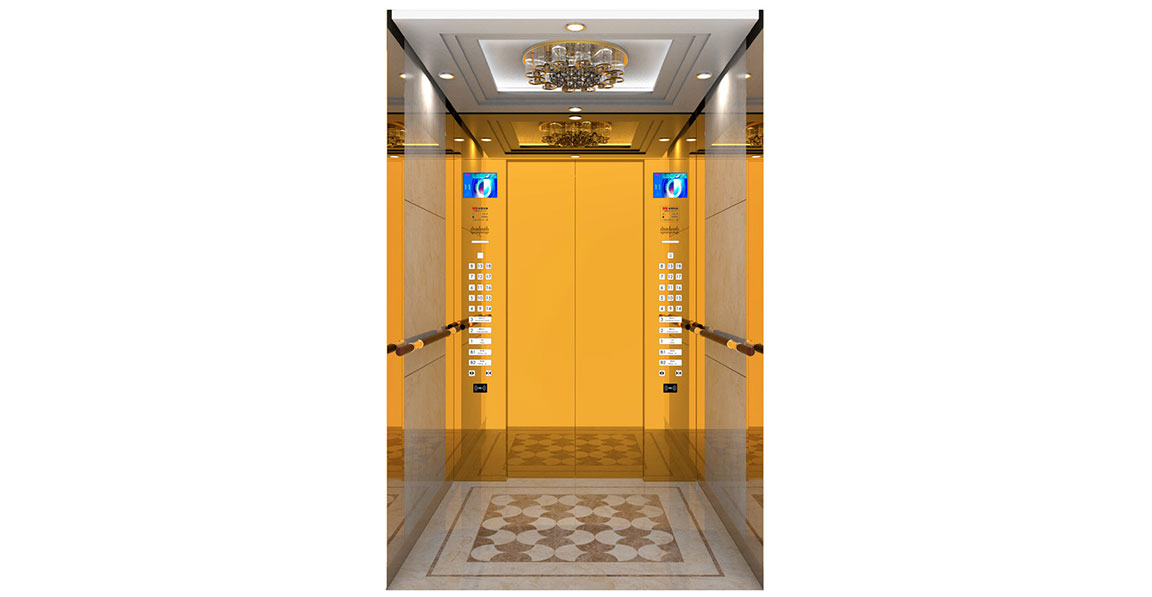

JOYMORE-7A Passenger Elevator

Name: JOYMORE-7A
Brand: IFE ELEVATORS CO., LTD.

Joymore-7A passes TUV elevator energy efficiency certification and obtains an A-level energy efficiency certificate.

Features of JOYMORE-7A Passenger Elevator

Flexible layout.
Shaft utilization rate isup to 58.06%.
Simplifed design.
lnstallation efficiency improves by 30%.

Specification Of JOYMORE-7A Passenger Elevator

NO.

Specification

400

450

550

630

800

1050

Capacity (kg)

400

450

550

630

800

1050

Speed (m/s)

1.75

Operation System

full collective selection operation

Driving System

VVVF

Door Operator System

VVVF

Traction Machine

Permanent Magnet Synchronous Gearless type

Control System

CTRL80

Parallel Elevators

2 units

Group Control Elevators

3-8 units

Wide Car1

Car Dimension mm
width*depth

1000x1100

1000x1200

1000x1300

1100x1400

1350x1400

1500x1600

Single door shaft size(mm)
W*H

1620x1450

1620x1600

1620x1650

1750x1750

1970x1750

2130x1950

Split door shaft size(mm)
W*H

1620x1610

1620x1710

1620x1810

1750x1910

1970x1910

2130x2110

Wide Car2

Car Dimension mm
width*depth

1400x900x2420

1400x1000

1400x1100

1100x1750

1100x2100

Shaft Size mm
W*H

2020x1300

2020x1400

2020x1550

1770x2100

1780x2450

Built On Quality, Bloomed On Novelty.

If you have any elevator & escalators questions, let us know, we will reply as soon as possible.

Contact With Us

E-mail: info@ifelift.com

Address:

Jinlong Road, Qingxi Town, Dongguan City, Guangdong Province, China

GET YOUR FREE CONSULTATION

Other Related IFE Machine Roomless Passenger Elevators Products

JOYMORE-7B

JOYMORE-7B Passenger Elevator

JOYMORE-7

JOYMORE-7 Passenger Elevator

BUILDINGEYE-JO

BUILDINGEYE-JO Panoramic Elevators

BUILDINGEYE-ME

BUILDINGEYE-ME Panoramic Elevators

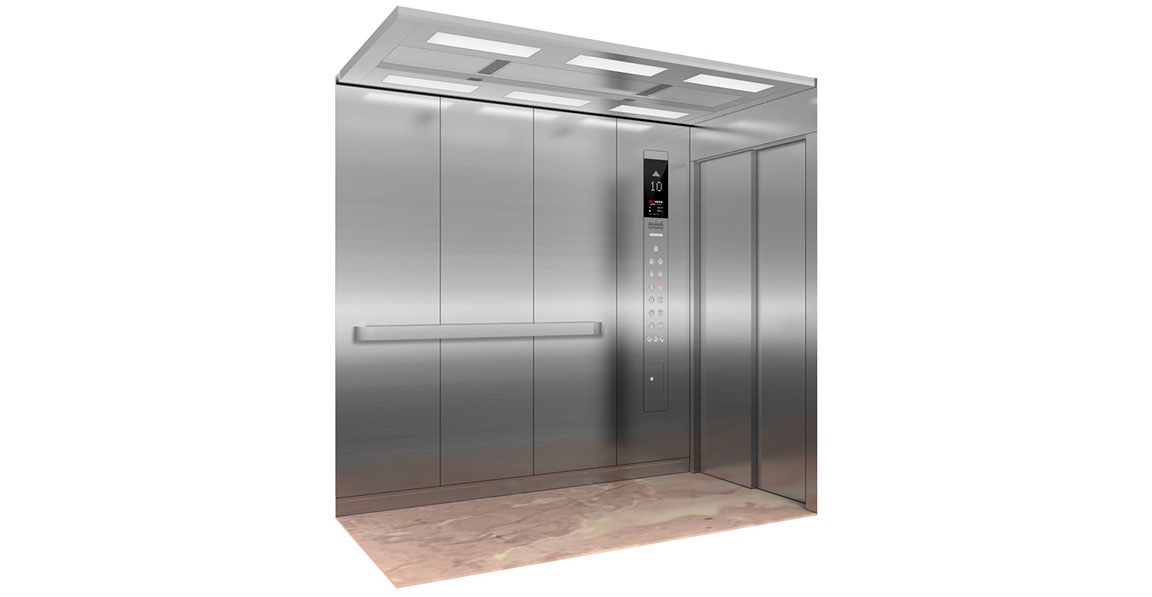

VAMB-ME
