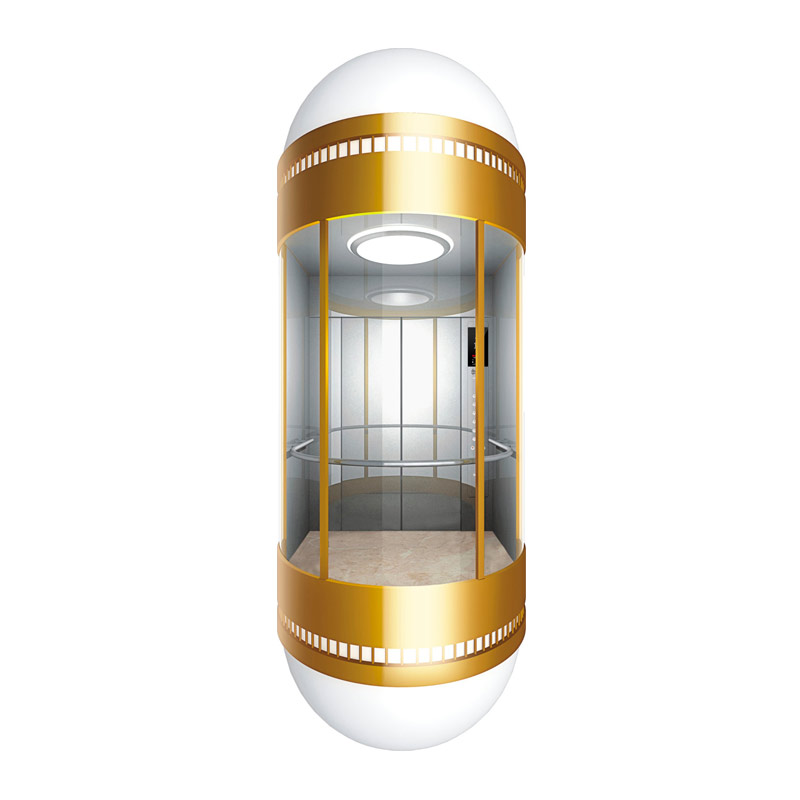

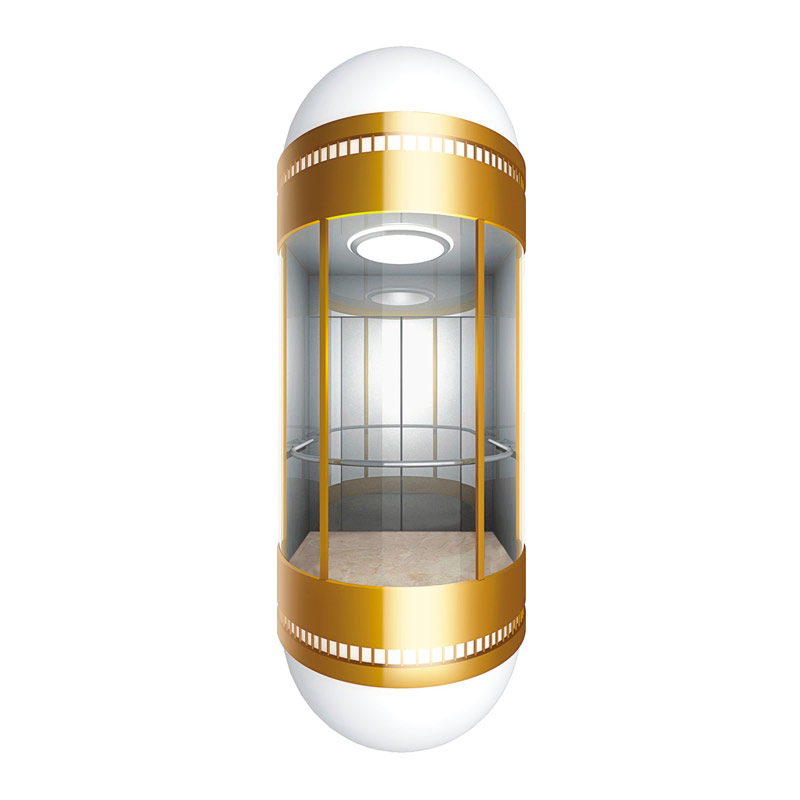

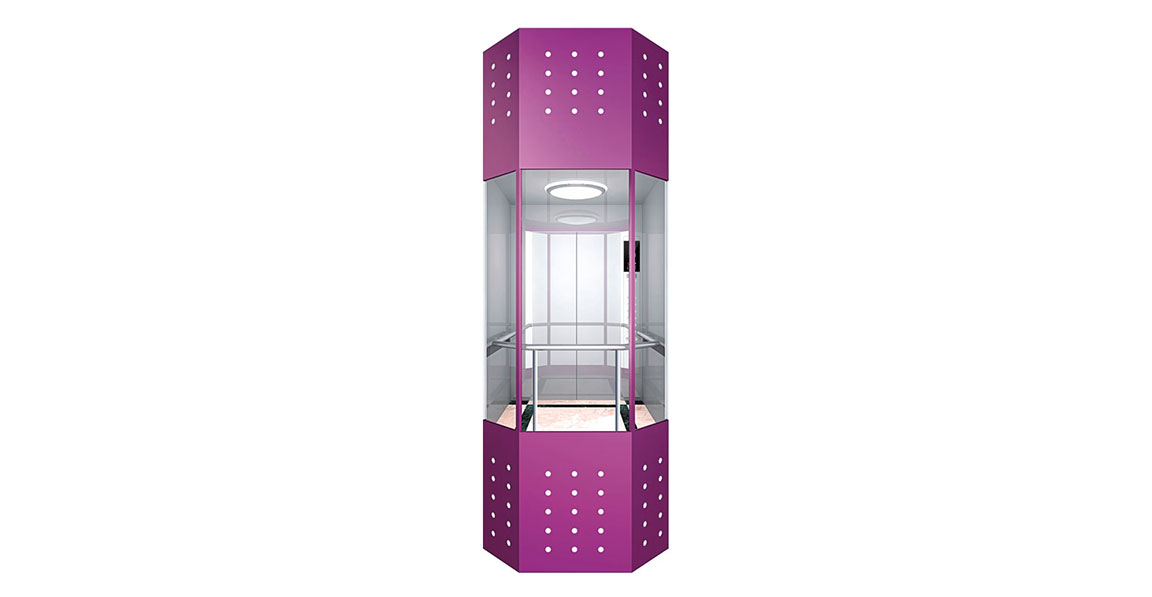

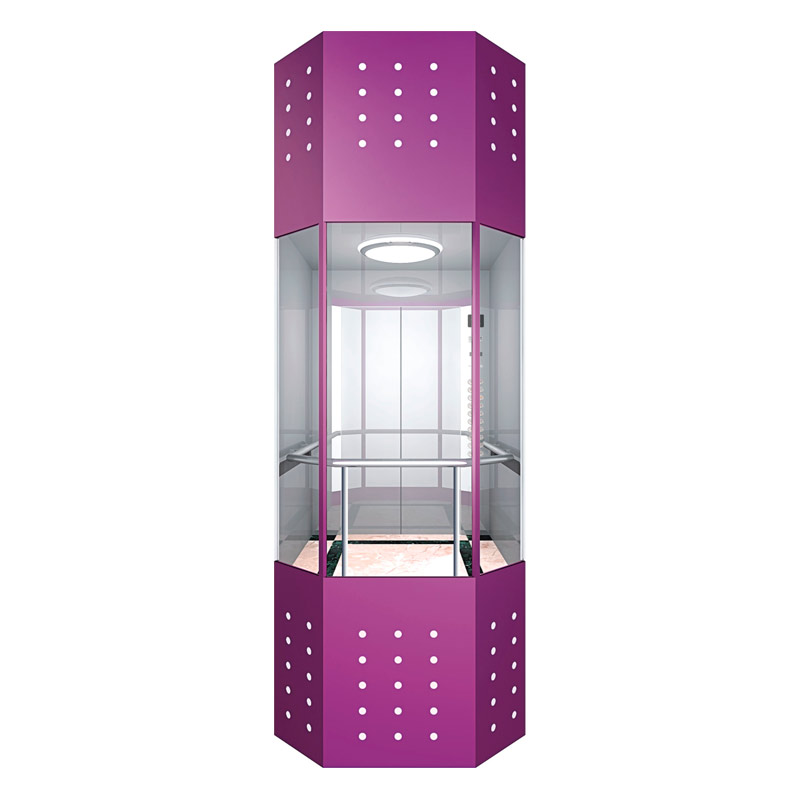

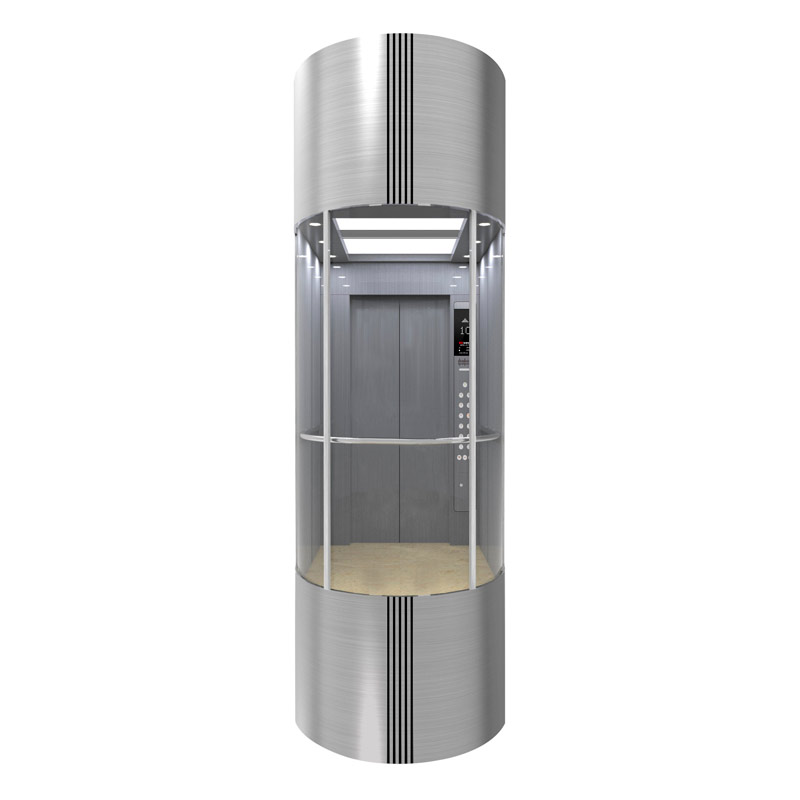

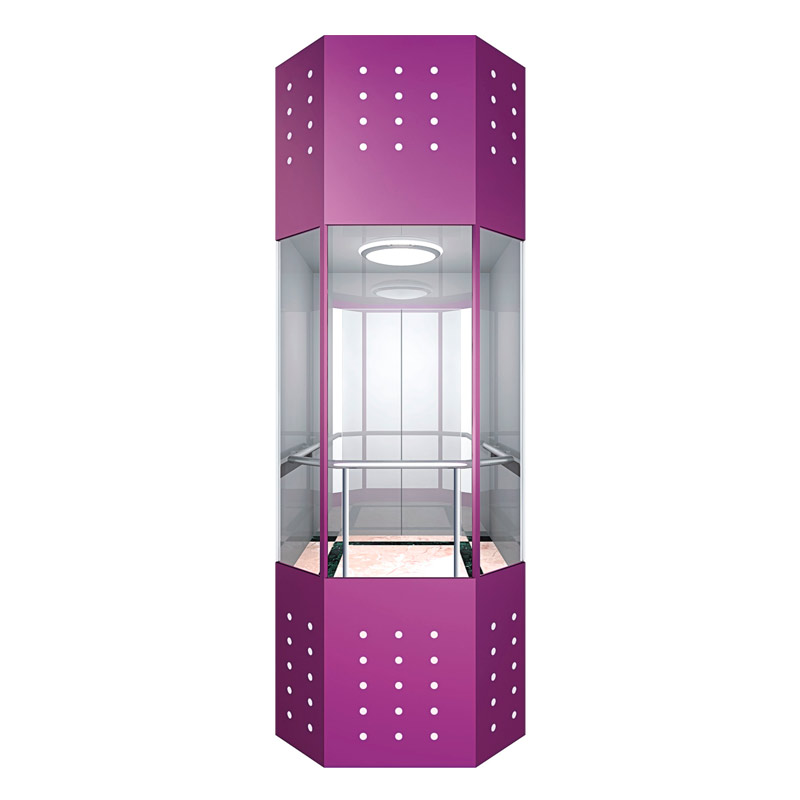

BUILDINGEYE-JO Panoramic Elevators

Name: BUILDINGEYE-JO
Brand: IFE ELEVATORS CO., LTD.

BUILDINGEYE-JO panoramic elevator interpreter IFE on the building function and aesthetics to grasp vividly rendered, so that BUILDINGEYE-JO, BUILDINGEYE-ME in the construction both inside and outside with a wealth of appeal.

Features Of BUILDINGEYE-JO Panoramic Elevators

Authoritative CE certification, EMC Standard.
Design of Unique Waterproof Structure of Outdoor Sightseeing Ladder.
Outdoor Sightseeing Ladder Equipped With Accompanying Cable Windproof Control system.
High-strength Tempered Glass, Breaking And Not Falling Off.

Specification Of BUILDINGEYE-JO Panoramic Elevators

NO.	Specification	630				800			1050			1350		1600

1	Capacity (kg)	630				800			1050			1350		1600
2	Shape	square		hemicycle	lozenge	square	hemicycle	lozenge	square	hemicycle	lozenge	hemicycle		hemicycle
3	Speed (m/s)	1		1	1	1	1	1	1	1	1	1		1
		1.75		1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75	1.75		1.75
4	Operation System	full collective selection operation
5	Driving System	VVVF
6	Door Operator System	VVVF
7	Traction Machine	Permanent Magnet Synchronous Gearless type
8	Control System	CTRL80
10	Car Dimension mm width*depth	1100*	1100*		1100*	1300*	1300*	1300*	1500*	1500*	1500*	1700*		1700*
		1400*	1550*		1550*	1450*	1600*	1600*	1600*	1700*	1700*	1900*		2200*
		2350	2350		2350	2350	2350	2350	2350	2350	2350	2350		2350
13	Shaft Size mm W*H	2200*1850	2200*2050			2400*1950	2400*2050		2600*2050	2600*2150		3050*2350	3050*2650

Built On Quality, Bloomed On Novelty.

If you have any elevator & escalators questions, let us know, we will reply as soon as possible.

Contact With Us

E-mail: info@ifelift.com

Address:

Jinlong Road, Qingxi Town, Dongguan City, Guangdong Province, China

GET YOUR FREE CONSULTATION

Other Related IFE Panoramic Elevators Products

BUILDINGEYE-ME

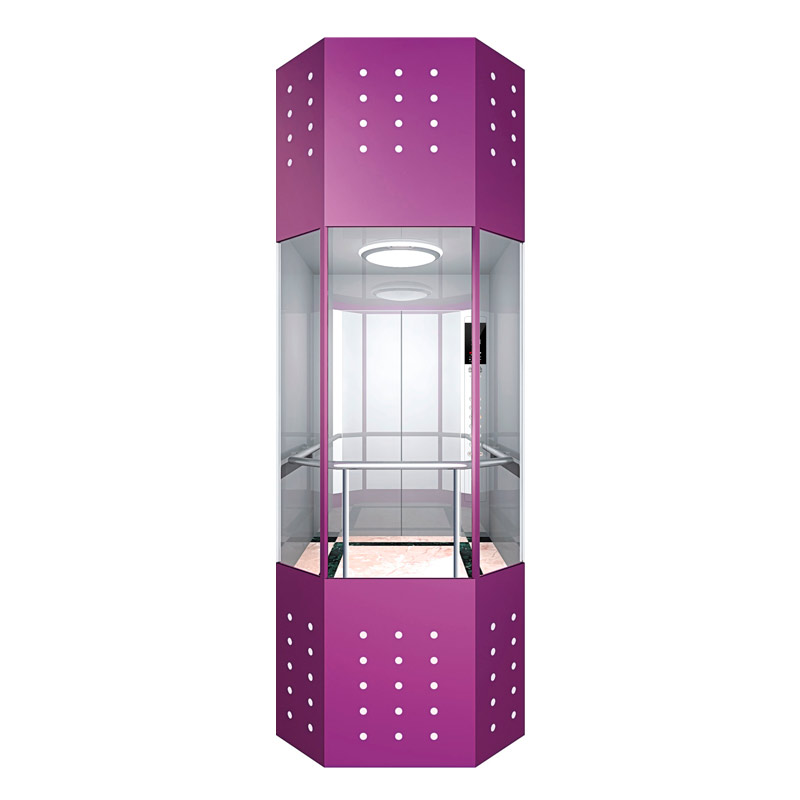

BUILDINGEYE-ME Panoramic Elevators
